ESD Precision Wire Stripper
for electrostatically protected areas from 0,12 - 0,8 mm
Description

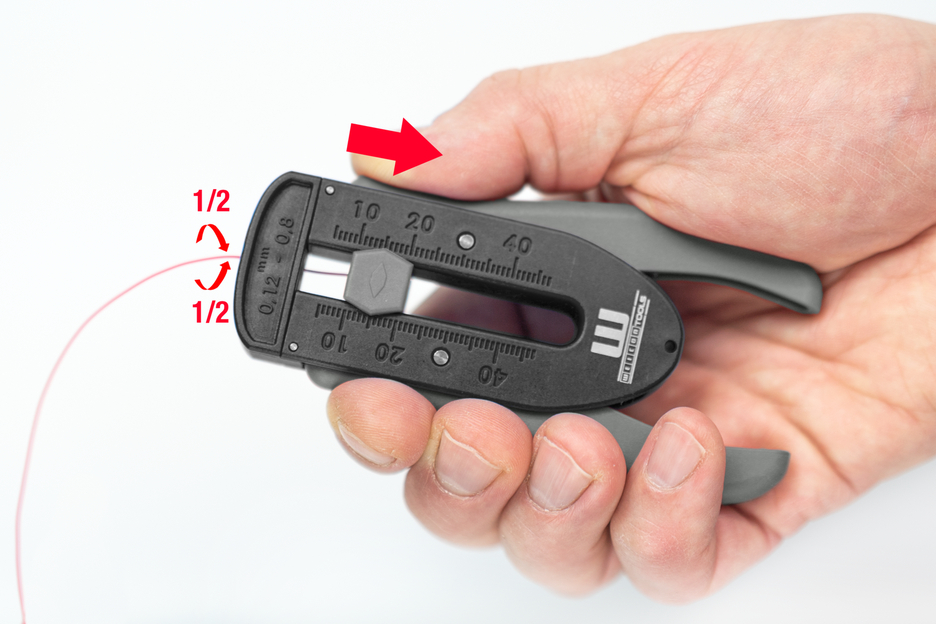

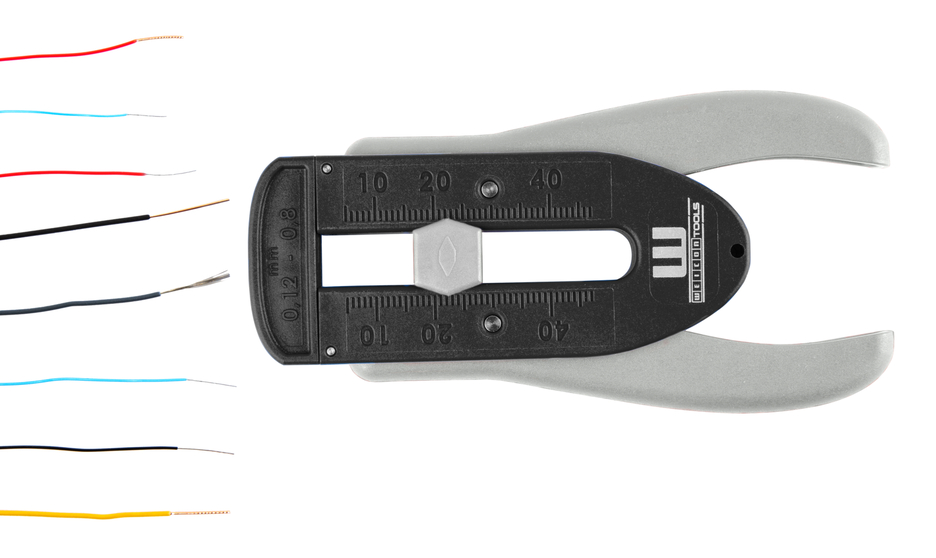

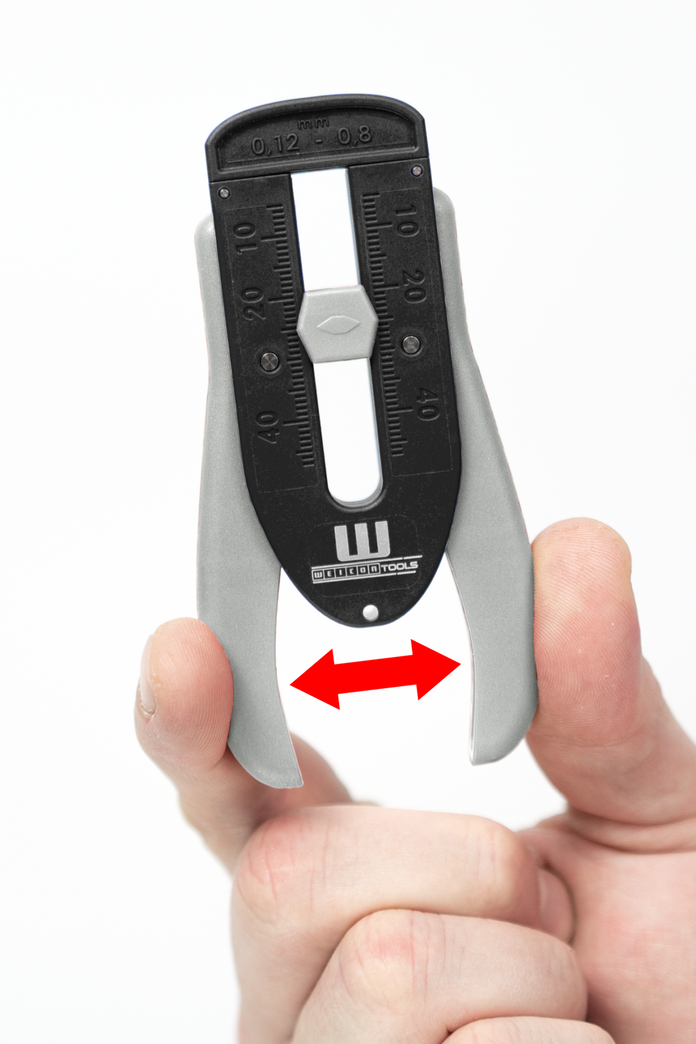

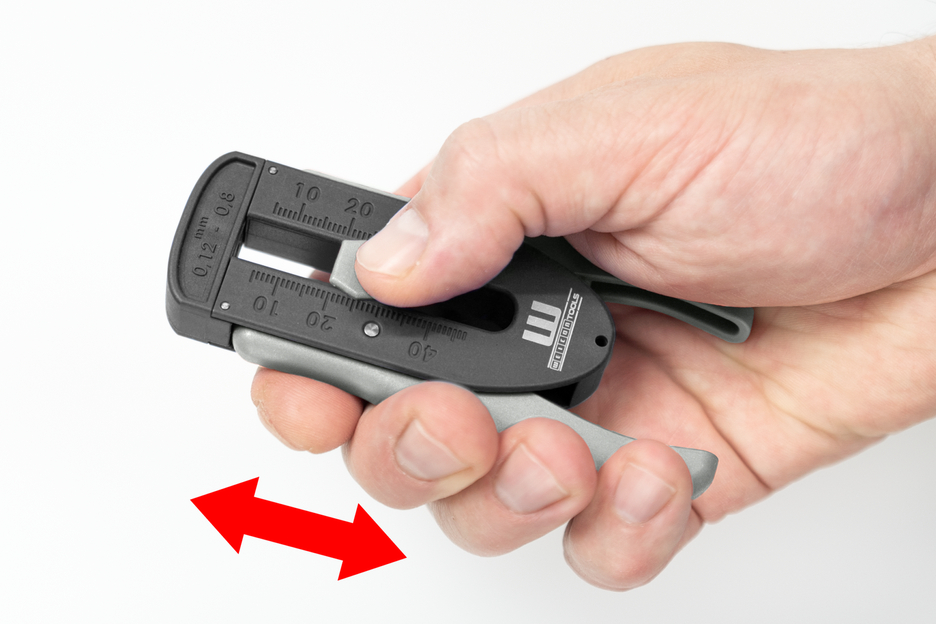

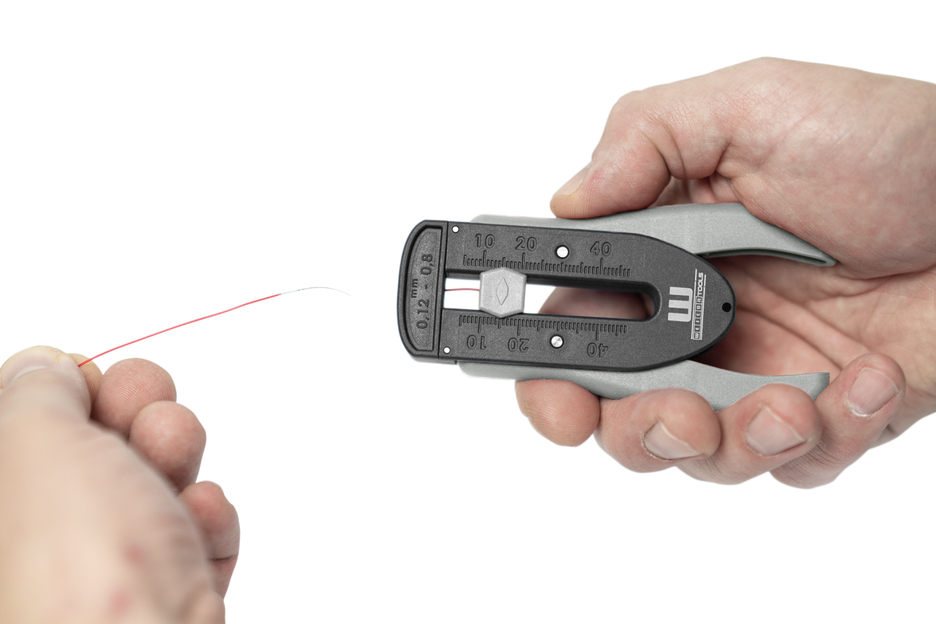

Semi-automatic wire stripper for the fast and safe stripping of extremely thin conductors, strands or wires with small diameters in the range of 0.12 mm - 0.8 mm (36 - 20 AWG). The tool was tested by an ESD laboratory and complies with the DIN EN 61340-5-1 standard. The wire stripper is suitable for working in electrostatic protected areas (ESD workspace/ ESD-protected area). With the adjustable scaled length stop for the working range from 5 to 45 millimetres, the desired stripping length can be set quickly and reliably. Two durable, precisely adjusted torsion springs, which push symmetrically onto the pair of blades with a defined force and automatically cut the respective insulation with the appropriate pressure, ensure comfortable working. In combination with the scanning system that is integrated in the tool, this ensures damage-free stripping. The tool is suitable for both right- and left-handed users.
Downloads
Information
- Tool
Login
Unsere Empfehlungen
(AED 298.20* / 1 PCE)
(AED 91.35* / 1 PCE)
(AED 65.10* / 1 PCE)
(AED 218.40* / 1 PCE)
Product safety
Attention:
Tool not to be used on live cables or conductors.
