Duo-Crimp No. 300 Green Line

Sustainable stripping tool I for stripping and crimping I working range 0,5 mm² - 6,0 mm²

Product number: 10062010
|
EAN: 4024596089580

AED 352.80*

Content: 1 PCE (AED 352.80* / 1 PCE)
Description

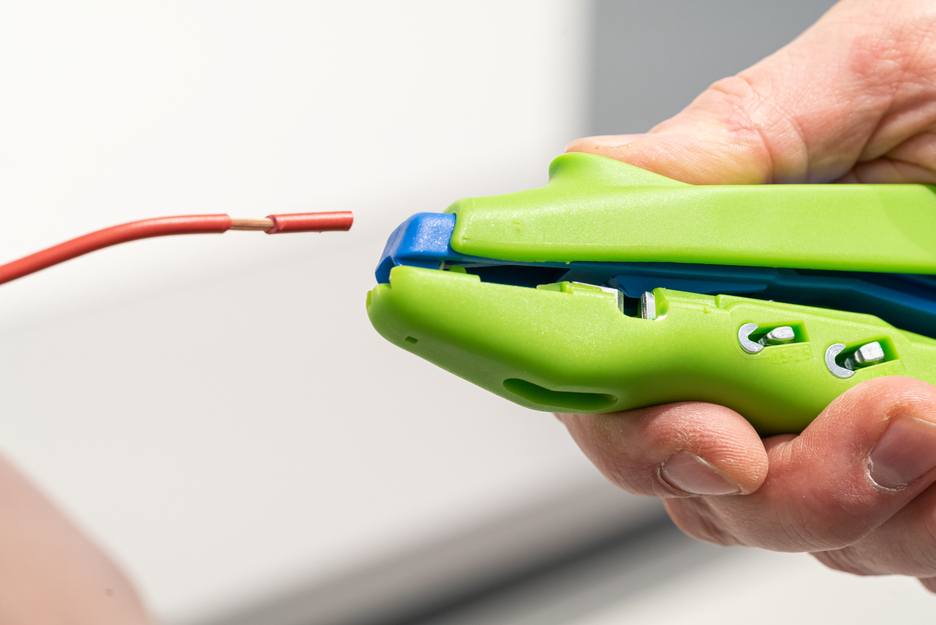

With the Green Line, a very special tool range has been developed. The tools are made of up to 97 % renewable raw materials, which are recyclable and have an excellent life cycle assessment. With the WEICON Duo-Crimp No. 300 Green Line can be used to strip conductors and crimp wire end ferrules. With the automatic scanning system no adjustment to the cable cross-section is necessary. The stripper has an optical length scale of 8 - 20 mm and is suitable for all common stranded and solid conductors from 0.5 mm² - 6.0 mm². The Duo-Crimp No. 300 insulates conductors to a length of 5 mm, preventing the individual conductors from splicing. Two crimping ranges are offered: 0.5 - 2.5 mm² and 4.0 - 6.0 mm². A well-accessible side cutter is integrated in the tool, which is suitable for cable cross-sectors up to 6 mm² (solid conductors up to 4 mm²).

Information
  • Tool

Please enter a valid email address.
Please enter a valid question.
Fields marked with * are mandatory.

There aren't any asked questions yet.

0 of 0 reviews

Leave a review!

Share your experiences with other customers.


Unsere Empfehlungen

Cable Scissors No. 35
with 2-component handles for more safety incl. stripping and crimping function
AED 298.20* (incl. VAT)

(AED 298.20* / 1 PCE)

Details
Wire Stripper No. 5 Green Line
Sustainable stripping tool I for all common stranded and solid conductors, working range 0,2 - 6,0 mm²
AED 210.00* (incl. VAT)

(AED 210.00* / 1 PCE)

Details
Multi-Stripper No. 400 Green Line
Sustainable stripping tool I multifunctional stripper, working range stripping 0,5 - 6,0 mm² I skinning 8 - 13 mm Ø I Multifunctional with 4 functions
AED 176.40* (incl. VAT)

(AED 176.40* / 1 PCE)

Details
Stripper No. 100 Green Line
Sustainable stripping tool I multifunctional stripper, working range 0,5 - 16 mm² / 4 - 13 mm Ø
AED 145.95* (incl. VAT)

(AED 145.95* / 1 PCE)

Details
Starter Set Pro Green Line
4-piece stripping set for house installations
AED 617.40* (incl. VAT)

(AED 617.40* / 1 PCE)

Details

Zubehör

Spare blade for No. 150/No. 200/No. 300
Spare blade for No. 150/No. 200/No. 300
AED 25.20* (incl. VAT)

(AED 25.20* / 1 PCE)

Details
Product safety

Attention:
Tool not to be used on live cables or conductors.
